Vortex Flow Meter (Model: JI-VORTEX-FM)
The Japsin JI-VORTEX-FM Vortex Flow Meter is a high-performance flow measurement instrument designed for accurate measurement of liquids, gases, vapors, and steam in industrial applications. Based on the proven Karman Vortex Shedding Principle, this flow meter delivers exceptional accuracy, long-term stability, and maintenance-free operation.
With no moving parts in the measuring section, the vortex flow meter offers superior reliability, reduced wear and tear, and lower maintenance costs compared to conventional flow measurement technologies. It is widely used across process industries where precise flow monitoring and control are critical.
The JI-VORTEX-FM is engineered to withstand demanding industrial environments and provides consistent performance even under varying temperature, pressure, and fluid composition conditions.
Key Features
- High accuracy flow measurement
- Suitable for liquids, gases, steam, and vapors
- Wide turndown ratio for versatile applications
- No moving parts for maintenance-free operation
- Excellent mechanical stability
- Low pressure loss
- Long service life
- High reliability in harsh industrial environments
- Minimal influence from temperature and pressure variations
- Easy installation and commissioning
- Available with digital display and output options
Applications
Industrial Process Plants
- Chemical Processing
- Petrochemical Industries
- Oil & Gas Plants
- Power Generation Facilities
- Water & Wastewater Treatment
Utilities & Energy
- Steam Consumption Monitoring
- Boiler Feed Systems
- Compressed Air Measurement
- Utility Flow Monitoring
Manufacturing Industries
- Pharmaceutical Plants
- Food & Beverage Processing
- Textile Industries
- Paper & Pulp Mills
- HVAC Systems
Working Principle
The Vortex Flow Meter operates on the Karman Vortex Shedding Principle. When a fluid passes through a bluff body installed in the flow path, alternating vortices are generated downstream. The frequency of these vortices is directly proportional to the flow velocity of the medium. The sensor detects these vortices and converts them into highly accurate flow measurements.
This proven technology ensures reliable performance for both volumetric and mass flow applications.
High-Precision Coriolis Mass Flow Meters
Unmatched Accuracy for Direct Mass Flow, Density, and Temperature Measurement
Overview
Engineered for demanding industrial process control, our Coriolis Mass Flow Meters deliver direct mass flow measurement without needing fluid temperature, pressure, or viscosity compensation. By measuring fluid inertia via the Coriolis effect, these sensors provide multi-variable output—simultaneously reading mass flow rate, fluid density, and process temperature in real time.
Whether you are dosing aggressive chemicals, managing custody transfer of oil and gas, or maintaining hygienic processing standards in food and pharma, Coriolis flow meters provide low maintenance and high operational repeatability.

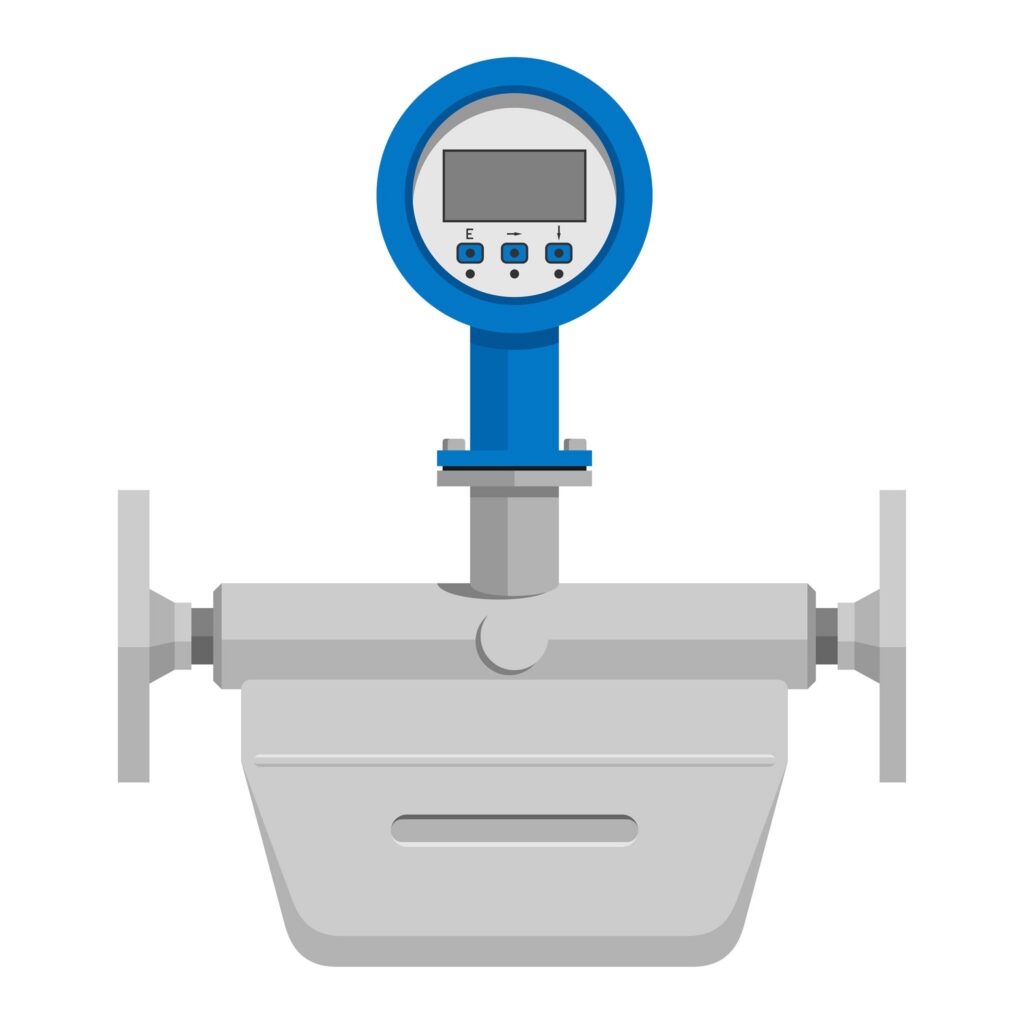

Mass flow meter – device that measures mass flow rate of a fluid traveling through a tube. Gas industry equipment in flat colors
Key Technical Specifications
| Feature | Performance Standard |
| Measurement Variables | Direct Mass Flow, Density, Temperature, Calculated Volume Flow |
| Mass Flow Accuracy | +/-1% to +/-0.05% of reading (Liquid) +/-0.35% (Gas) |
| Density Accuracy | +/- 0.0005 g/Cm3 |
| Process Temperature Range | -200 Deg C to +/-350 Deg C (Cryogenic to High Temp) |
| Wetted Materials | 316L Stainless Steel, Hastelloy C-22, Titanium, Tantalum |
| Output Communications | 4-20mA HART, Modbus RS485, Foundation Fieldbus, PROFINET |

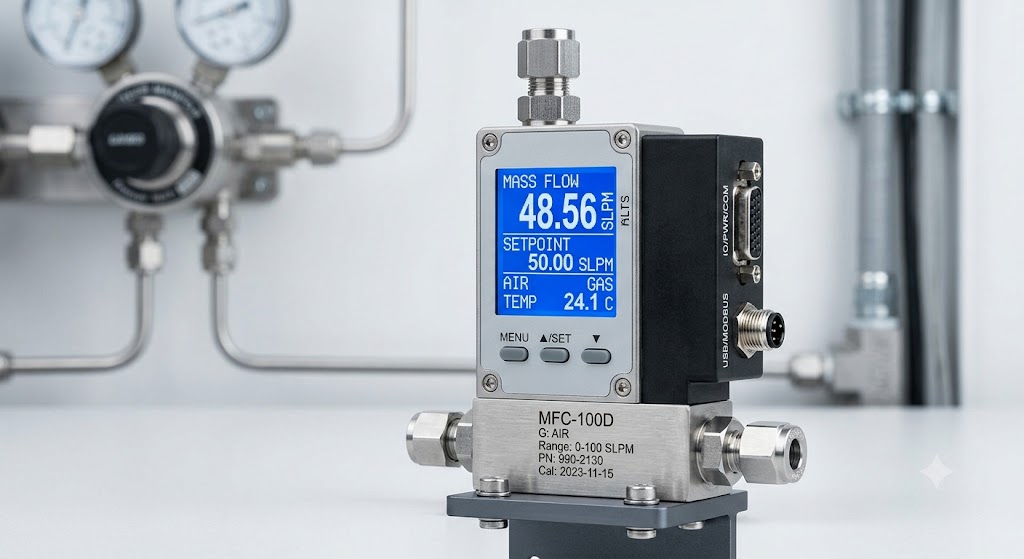

DIGITAL DISPLAY MASS FLOW CONTROLLER
Real-Time Flow Monitoring and Active Control in One Integrated Device
A Digital Display Mass Flow Controller (MFC) combines a high-accuracy mass flow sensor, a fast-acting proportional control valve, and an integrated digital readout into a single compact unit. Designed for precise gas delivery in laboratory research, semiconductor manufacturing, and industrial automation, it actively measures and regulates gas flow rates regardless of upstream pressure fluctuations.
Unlike standard mass flow meters that only read flow rates, a controller actively regulates flow to a specified setpoint via local buttons or digital communication protocols.
Key Technical Specifications
| Parameter | Standard Specification |
| Control Accuracy | +/- 0.5% to +/-1% of Full Scale |
| Repeatability | +/-0.2% of Full Scale |
| Response Time | <1 Second (typical step response to setpoint) |
| Flow Ranges | 0-10 (SCCM} to up to 0-1000 (SLPM) (Standard Liters Per Minute) |
| Display Type | OLED or backlit LCD showing live flow, total volume, setpoint, and gas type |
| Wetted Materials | 316L Stainless Steel, Viton/Kalrez seals, Anodized Aluminum |
| Control Signal / Comms | 0-5V, 4-20mA, RS485 (Modbus-RTU), USB-C, EtherCAT |

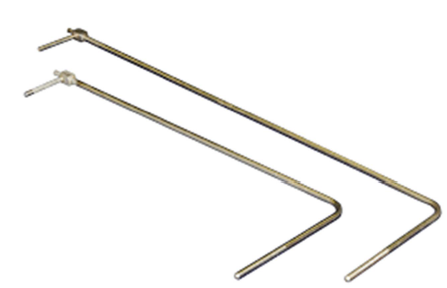

Pitot Tubes

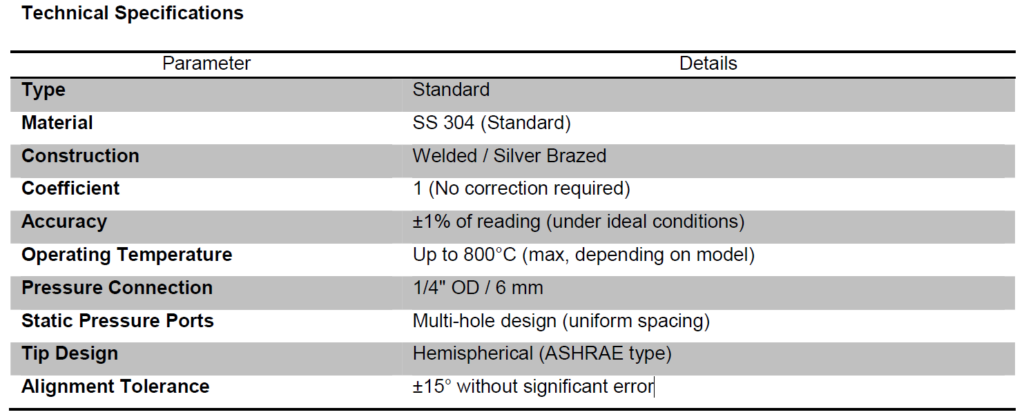

Pitot Tubes are used for measuring air velocity and differential pressure in ducts, pipelines, and HVAC systems. Designed for accurate and reliable performance in industrial applications.
